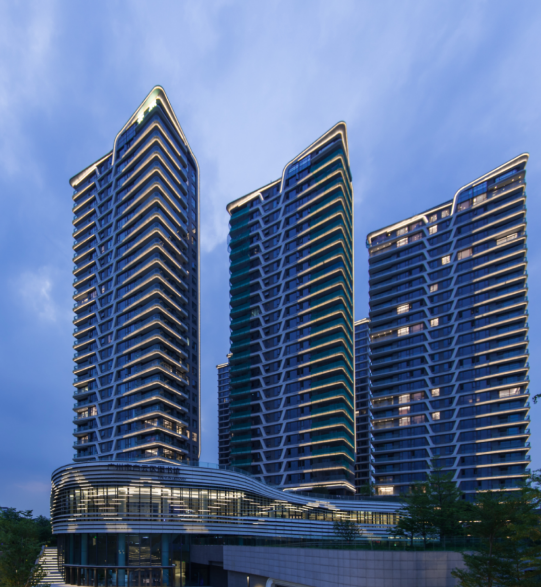

▲天鹅般的建筑


项目位于广州市白云区,紧邻云城西路,占地面积:25905㎡,建筑面积:101029.5㎡,高层建筑头部与立面线脚汲取天鹅展翅的形态,犹如优雅的天鹅荡漾于湖面,有着“高贵、典雅”的寓意。

The project is located in Baiyun District, Guangzhou City, close to Yuncheng West Road, covering an area of 25905 m2 and a construction area of 101029.5 m2. The head and facade line feet of high-rise buildings absorb the form of swans spreading their wings, just like elegant swans rippling on the lake, which has the meaning of "noble and elegant".



▲白云区图书馆


市政配套的白云区图书馆由上海世博会“中国馆之父”何镜堂院士操刀设计,不规则的横向铝板装饰线条贯穿整个立面,上下部分的线条呈现面状,面与线的组合让立面显得更为丰富和立体。

The municipal supporting Baiyun District Library is designed by academician He Jingtang, The father of China Pavilion of Shanghai World Expo. The irregular horizontal aluminum decorative lines run through the whole facade. The lines of the upper and lower parts present a surface shape. The combination of surface and line makes the facade more rich and three-dimensional.



▲高层建筑


高层建筑的飞翼是建筑的特征,我们希望夜晚通过灯光能把建筑的飞翼元素强调出来,并形成柔和的亮度退变。

TThe flying wings of high-rise buildings are the characteristics of buildings. We hope that the flying wings of buildings can be emphasized by lighting at night, and form a soft brightness degeneration.



▲灯具安装



▲灯具安装


将灯具安装在飞翼底部需要考虑3个方面的因素:1、被照面的均匀度;2、灯具的隐蔽性;3、从高楼层往低楼层看时所形成的眩光,经过多次的模拟测试,我们确定了灯具的样式与安装方式。

Three factors need to be considered when installing the lamp at the bottom of the flying wing: 1. The uniformity of the illuminated surface; 2. The concealment of lamps and lanterns; 3. After many simulation tests, we have determined the style and installation method of lamps.



▲灯具与建筑完美融合


安装完毕后的灯具丝毫不影响建筑的外观,从上往下的视线中也看不见灯珠,灯具与建筑完好的融合在一起。

After the installation of lamps and lanterns does not affect the appearance of the building, from the top to the bottom of the line of sight can not see the lamp beads, lamps and lanterns and buildings are integrated in good condition.



▲灯光与建筑相融合



▲灯光与建筑相融合


与设计时思考的一样,灯光表现了建筑的天际线以及立面的飞翼特征,灯光与建筑相融合,既能独立的表达建筑特征,又能与其他建筑形成整体的呼应效果。

As thought in design, lighting shows the skyline and wing features of facade. The integration of light and architecture can not only express the architectural characteristics independently, but also form the overall response effect with other buildings.



▲灯光对建筑的刻画


灯光对建筑天际线与飞翼的刻画。

The depiction of skyline and flying wings by lighting



▲灯光对建筑的延伸


灯光也形成对建筑元素的延伸,用一种间接的方式呈现了建筑在夜间的美。

Lighting also forms an extension of architectural elements, presenting the beauty of architecture at night in an indirect way.



▲山的原型



▲“山”的设计


白云区图书馆的万博官网网页版本登陆设计我们借鉴了白云山的“山”形与书山学海的 “山”作为设计灵感的来源,将一本本堆砌的书,形成山的形态。

The lighting also forms the extension of architectural elements, presenting the lighting design of the library in the beautiful white cloud area at night in an indirect way. We draw on the "mountain" shape of Baiyun Mountain and the "mountain" of the book mountain as the source of design inspiration, and turn the stacked books into the shape of mountains.



▲“山”的效果模拟


将山形赋予到建筑,所形成的效果模拟。

Give the mountain shape to the building, the effect of the formation of simulation



▲灯带与铝板装饰条结合的测试


灯带与铝板装饰条结合的测试,主要明确表面的柔和度,安装与维护的细节,出线方式等。

Give the mountain shape to the building, the effect of the formation of simulation lamp strip and aluminum decorative strip combined with the test, mainly clear the surface softness, installation and maintenance details, outlet way and so on.



▲灯带的尺寸



▲灯带的尺寸


因为不规则的线条需要形成山的图案,灯带会形成不同尺寸的长度,在大效果控制下,不能忽略细节的布置,这是一个反复与折腾的过程。

Because the irregular lines need to form the mountain pattern, the lamp band will form the length of different sizes. Under the control of the large effect, we can not ignore the details of the layout, which is a repeated and tortuous process.



▲图书馆面貌


山体的轮廓在图书馆的立面显现出来,下面装饰条面的形式形成山脚,上面形成山顶的云雾,面状与线状通过一个元素连接了起来,组合成一个完整的画面。

The outline of the mountain is shown on the facade of the library. The decorative strip below forms the foot of the mountain, and the cloud on the top of the mountain. The surface and line are connected by an element to form a complete picture.



▲山体般的灯光线条展示


不同长度的横向线条镶嵌在建筑铝槽内部,在不影响白天建筑立面的同时又能反映出设计的主题。

The horizontal lines of different lengths are embedded in the aluminum trough of the building, which can not affect the facade of the building in the daytime, but also reflect the theme of the design.



▲灯光线条的局部展示



▲灯光线条的局部展示


无论从哪个方向看,灯与灯之间都能形成联系,不会造成错乱感。

No matter from which direction, the light can form a connection between the lights, will not cause confusion.



▲灯光的形态


建筑在立面上也有空间差,灯光的布置必须严格把控位置和视线关系,才能让形态不至于杂乱。

The building also has poor space on the facade, so the lighting layout must strictly control the relationship between the position and the line of sight, so that the form will not be disordered.


▲灯带与高层建筑


▲灯带与高层建筑


图书馆的灯带与高层建筑的飞翼形成整体的呼应。

The light belt of the library and the flying wing of the high-rise building form a whole echo.



▲山体般的高层建筑


线与飞翼的融合。

The fusion of line and flying wing



▲灯光夜间的美


夜幕降临,灯光把建筑与景观联系起来,构成一个有立体、有层次、又明暗的舒适空间,光,让夜间变得更为丰富也更有格调。

As night falls, lighting connects the building with the landscape, forming a three-dimensional, layered, bright and dark comfortable space. Light makes the night richer and more elegant.



▲灯光融入建筑



▲灯光融入建筑


光表达建筑,又融入建筑~

Light expresses architecture and integrates into architecture~




项目信息项目名称:首开龙湖天奕&白云区图书馆万博官网网页版本登陆设计项目
地址:广州市白云区建设
单位:广州市振梁房地产有限公司
建筑设计:HZS
景观设计:AECOM
图书馆建筑设计:华南理工大学建筑设计研究院
万博官网网页版本登陆设计:广州市元色万博官网网页版本登陆设计有限公司
完成时间:2021年
